DAY OF THE JACKAL - MID-RANGE CONTROL BOX FOR STOCKS AG APPLICATORS
Stocks Ag has a new mid-range controller for its range of pneumatic, gravity-fed and spinning disc applicators.
With key-pad menu navigation, the Jackal is an easy to operate, robust, compact unit that provides users with a whole raft of functionality. Critically its ability to process either a radar or gearbox speed signal from the tractor’s seven-pin ISO socket means it is able to deliver forward speed-related rate control. It can also be supplied with a GPS receiver for this purpose.

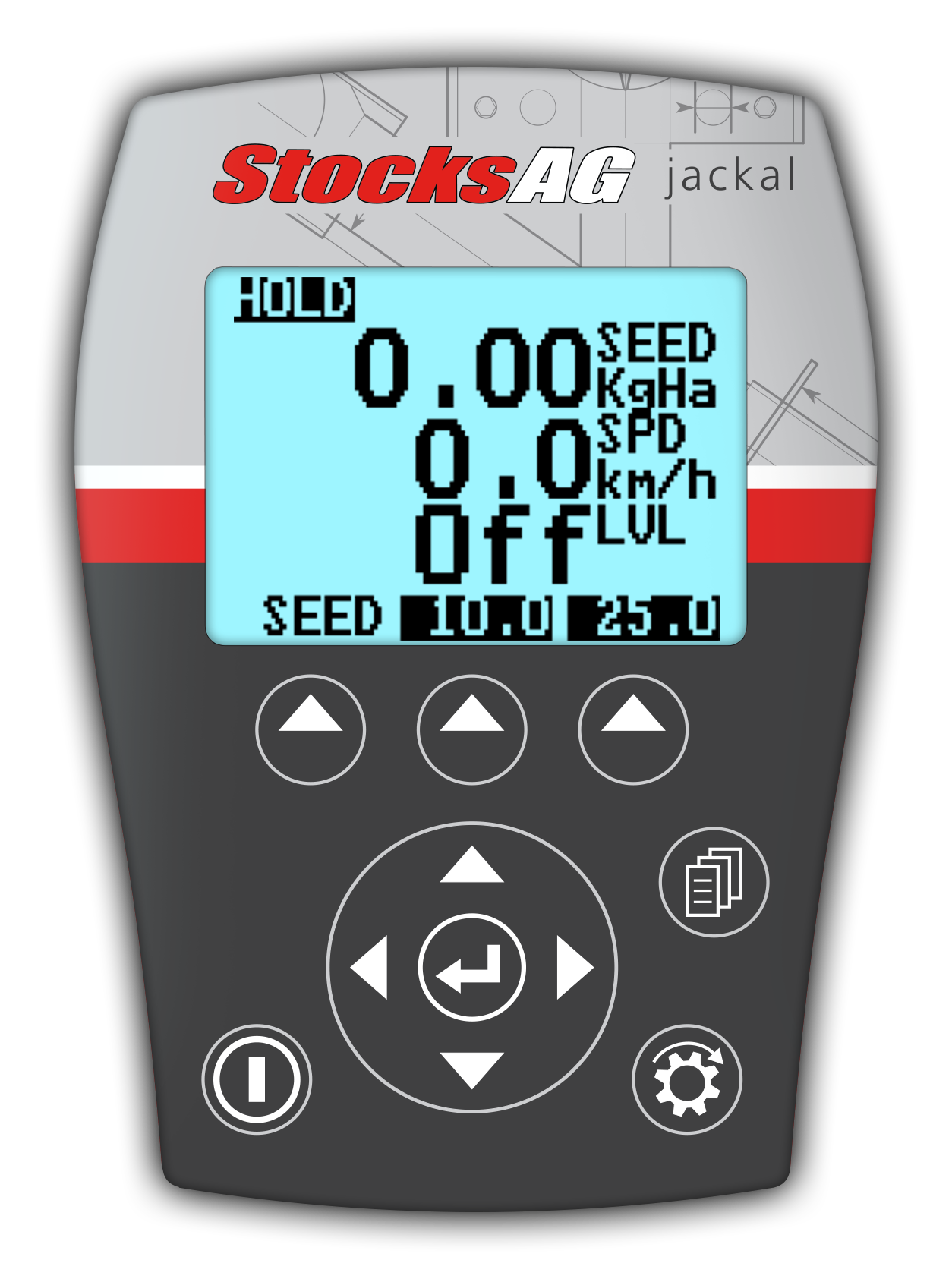

The large easily-read characters on the backlit LCD screen provide real-time read-outs of application rates, forward speed, area worked, fan status and hopper level. Programmable ‘Hotkeys’ allow the operator to switch between two pre-set application rates as well as enabling on-the-move rate adjustment.
The addition of an implement cut-out switch can bring further levels of automation, shutting off the flow of material as the machine is lifted at the headland and then reinstating metering system drive once it is lowered back into work.
Slotting in between the base-specification VS-2 control box and the top-end colour touchscreen i-CON, the addition of the Jackal provides purchasers of Stocks’ Turbo Jet, Rotor Meter, Fan Jet Plus, Maxi Meter and Micro Meter applicators with three cost options and three different levels of functionality.
While the toggle-switch and dial-operated entry-level VS-2 offers manual rate control adjustment and certain preset options, the mid-range Jackal now provides real-time machine status monitoring and speed-related rate control. Meanwhile the top-spec i-CON delivers touchscreen functionality with the facility to handle variable application rates via maps uploaded by USB or SD card.
The Jackal box makes calibration of any applicator much simpler than the VS-2. At the touch of a button, it prompts the metering unit to dispense a given amount of product. With that weighed, the computer will make adjustments to metering roller speed to ensure the most precise application rates.
Moving to this ultra-accurate system means it is now possible to meter out product at incredibly low rates down to below 1kg/ha – particularly useful when spreading granular products such as Avadex or when sowing hybrid brassicas such as OSR.
You can find Stocks Ag at Agritechnica Hall 9, Stand H04 - Hannover Messe, Germany - 12-18th November 2023.
BUILT IN THE UK
Wisbech is still the home of Stocks Ag. All applicators are fabricated, assembled and painted in the Cambridgeshire factory. Precision assembly and quality control are paramount to the production process.
The R & D team work with both the factory and farmers to deliver a seeding solution that is fit for current farming practices.
