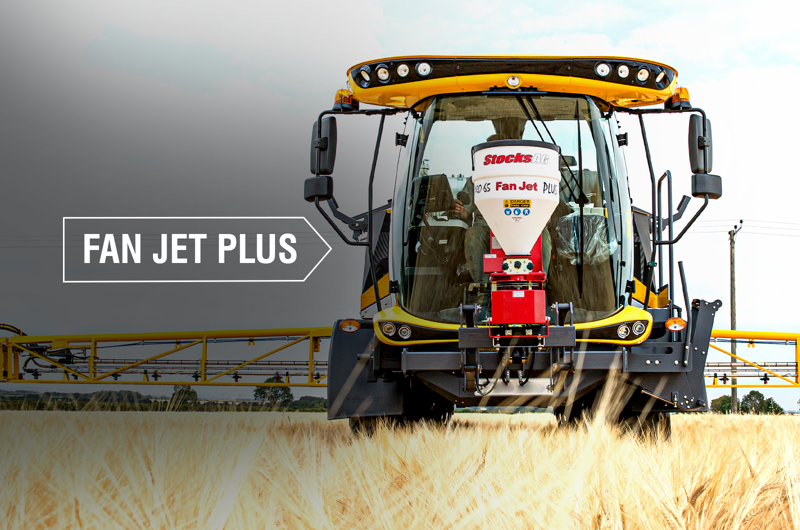

Fan Jet Plus

The Fan Jet Plus has all the features of the standard Fan Jet Pro in terms of spreading performance, headland control and options, although variable disc speed is standard. However, Plus models use a rotary feed mechanism, instead of a gravity feed, onto the spinning disc.

The Plus can also be mounted on most 12v agricultural machines with the exception of a quad bike due to its weight and power requirements.

Fluted feed rollers are driven by an electric motor, and the choice of feed roller and speed of rotation determines the application rate. A rotary feed allows very low application rates to be used without risk of blockages.

The standard control unit allows rates to be manually changed on the move. i-CON GPS control can be specified for ultimate accuracy. Rates are automatically controlled in proportion to forward speed. Variable rates can also be applied using the i-CON control system to link with mapping data, subject to an unlocking fee.

QUICK ENQUIRY

METERED FEED

FAN JET PLUS (Vari-Speed Control)
FAN JET PLUS (i-CON Control)

KEY FEATURES

Spread width up to 24m
Adjustable speed related application with i-Con
Easy, quick, stepless adjustment of bias left or right
Easy emptying of hopper
Adjustable deflectors to limit spread width
Disc speed adjustment to limit spread
Mostly used on sprayers or UTVs
3500 rpm disc motor
Stainless steel twin-vane spinning disc
Electric motor adjustment of application rate
12v 30A Power requirement
In cab electric controls. Instant feed shut off
5m fused power and 6m connector cable included
Robust construction with high-quality motors
65 or 130 litre plastic hopper
Optional grass seed deflector
Optional feed rollers available

FAN JET PLUS CONTROLS

Two Control Options

VARI-SPEED CONTROL

The disc speed can be 'dialled up' or down to adjust the spreading width, for example to match the implement width, or use to broadcast small seeds with minimum damage (OSR, turnips, etc).

Application rates are set by a combination of feed roller type and speed. both can be changed on the move from the tractor seat using a simple dial control.

Left hand switch - main power and disc on/off
Left hand dial - disc motor speed control
Right hand switch - feed motor on/off
Right hand dial - disc motor speed control

A simple and effective manually operated electric control is used to instantly start and stop the feed motor e.g. at headlands.

i-CON CONTROL

Rates are automatically controlled in proportion to forward speed for ultimate accuracy, and the machine can apply variable rates according to mapping data using a GPS based touch screen*.

*subject to unlock fee

Seed application rate kg/ha or seeds/m²
Forward speed km/hr
Minimum/maximum forward speed indicator with alarms
Metering unit status (on/off) and alarm
Disc status (on/off) and alarm
Hopper contents kg and low level alarm
Part and full job totals for area (ha), product dispensed (kg) and hours worked
Grand total for area (ha) product dispensed (kg) and hours worked
ISOBUS compatibility kit available

SPREAD WIDTH

Quoted spread widths are only a guide. The density of product diminishes towards the extremity and so an overlap is recommended.

The maximum spread width is determined by:

Product type & integrity
Product density
Application rate
Forward speed
Wind speed and direction
Disc height from crop canopy

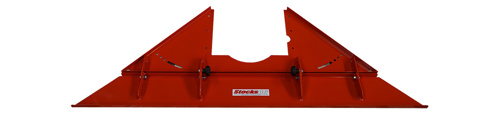

SEED DEFLECTOR

An easily attached, optional adjustable deflector reduces and controls the spread width for products such as grass seed.

Optional seed deflector

FLUTED FEED ROLLERS

The fluted feed rollers supplied are suitable for most products from low to high rate applications. The rollers agitate the product to ensure a consistent flow. The feed roller meters product onto the spinning disc.

Alternative feed rollers are available for specialist pellets and seeds. These are easily changed to provide suitable application rates.

CALIBRATION HOPPER

An optional calibration aid, a steel chute is easily attached and collects and deflects the product being spread into a user provided bag for weighing during calibration checks. The calibration aid is supplied as standard with all i-CON models.

WATERPROOF COVERS

Fan Jet’s can be supplied with optional waterproof covers for use when out of work.
